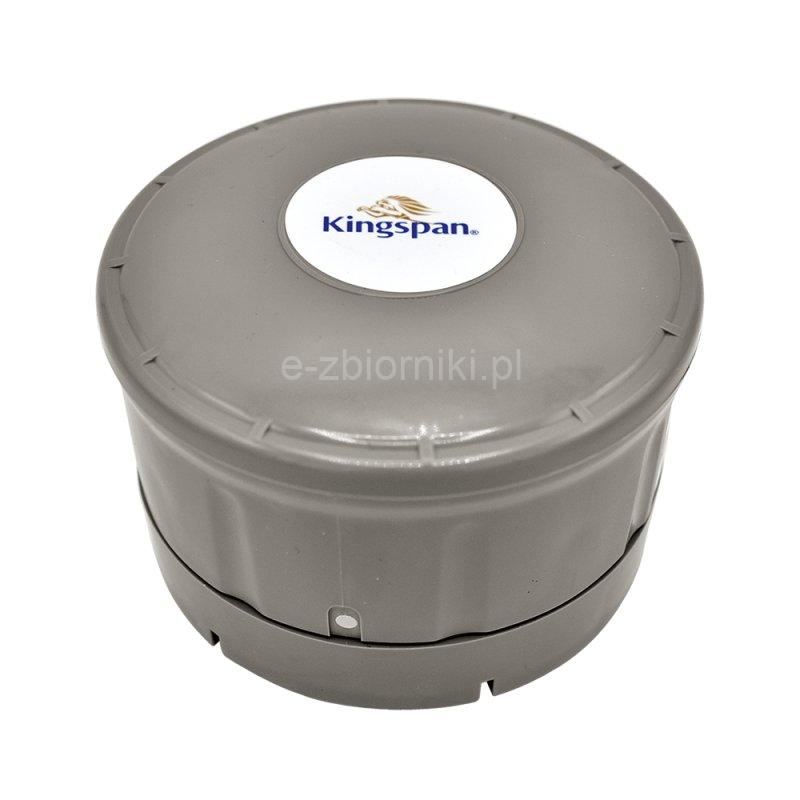

Watchman^® Sonic Advance

Tank depth measurement:

• minimum depth: 0.5 m
• maximum depth: 3 m

Display:

Bar level indicator, each bar corresponds to 10% of the tank height. An early warning indicator (flashing tank fill indicator) at a certain height above the bottom of the tank. Flashing red tank empty LED at a certain height above the bottom of the tank..

Communication range:

• 200 m under normal 'line visibility' conditions.
• the actual operating range of the device may be influenced by external factors that reduce the range of the transmitter or the sensitivity of the receiver

Power supply:

• receiver: 230 V, 50–60 Hz +/- 10%.
• transmitter: 3 volt lithium cell.

Battery life:

Up to 3 years (depending on the height of the tank and the frequency of filling / emptying it).

Wireless connectivity:

433 MHz. FM modulated signal transmission. EN 300-220

Dimensions:

• receiver: 50 x 55 x 35 mm (without antenna).
• transmitter: 70 x 93 mm.

Max. And min. operating temperature (transmitter):

• working temperature range from –10 to + 50ºC.
• working humidity: 0-100%. Hermetically sealed device made of UV stabilized PP3317 material.

Tank Mounting Hole Size:

• 32 mm opening
• connector with male BSP 2 "thread

The warranty is subject to the product being used in accordance with the manufacturer’s instructions.
The dimensions given are approximate. The differences result from the production technology and method of use of the product.

Most accessories will be delivered within 1-3 working days. Deliveries are made to parcel machines or to a designated address specified by the Customer.
In the event of non-availability of the Goods, the Shop will inform the Customer of the expected delivery time and, in the case of paid orders, the Customer has the option to cancel the order with a full refund.
For more information on delivery, see the "Delivery and Returns" tab: https://www.e-zbiorniki.pl/information/17-delivery-returns

• Product Code: 1008341
• Availability: On stock
• Warranty: 2 years
• Weight: 0.5kg
