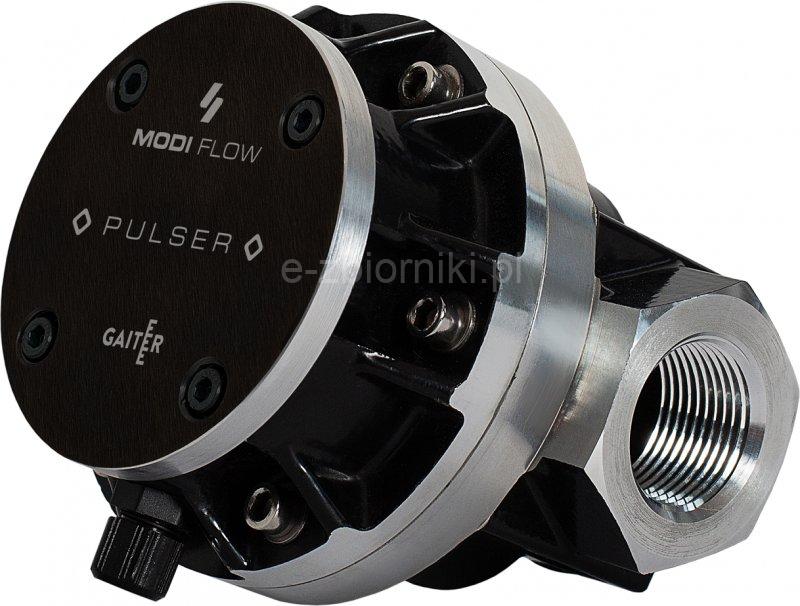

Pulser flowmeter ModiFlow Pulser

Pulser flowmeter ModiFlow Pulser

Product features and parameters:

• size: 25 mm,
• accuracy: +/- 0,5%
• working pressure: 0,3 MPa
• max. viscosity: 1000 cP,
• min. flow rate: 10 l./min,
• maximum flow rate: 120 l.p.m,
• repeatability: ≤0.03%,
• nominal voltage: 3 - 5V

The strengths of the ModiFlow to PULSER are mainly:

• the flow meter does not have a display, so its main task is to transmit a signal to the liquid dispensing management systems,
• the impellers are made of stainless steel giving a wide range of applications,
• The aluminium body withstands high pressure,
• the flow meter with positive displacement oval impeller measures fluids with high or varying viscosity,
• The unit can be mounted horizontally or vertically, suitable for pressure and gravity installations,
• impulses are transmitted by a Hall sensor

The warranty is subject to the product being used in accordance with the manufacturer’s instructions.
The dimensions given are approximate. The differences result from the production technology and method of use of the product.
The pump flowrates listed are the maximum flow rates across the pump as defined by the pump manufacturer. The actual flowrate in service will be lower. How much lower will depend on the equipment specification, how well the equipment is maintained, the quality of the media being pumped and the operating temperature.
